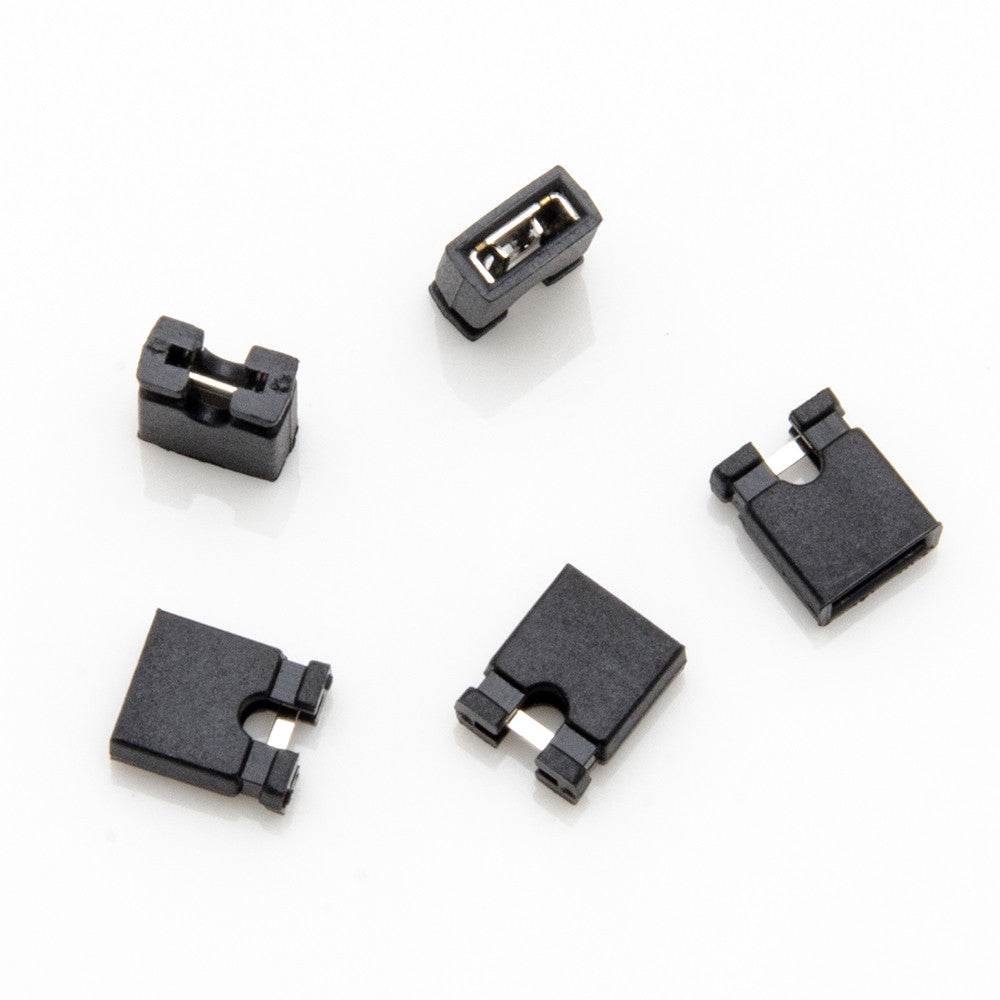

Jumper 2-Pin - Set of 10
$ 1.29

JUMPERS

Features:
  • Insulator Material: PBT.
  • Contact Material: BRASS.
  • Plating: GOLD FLASH OVERALL.
  • UL Flammability Rating: 94V-0.
  • Dielectric Withstanding Voltage: 650V AC.
  • Current Rating: 3 AMPS PER CONTACT.
  • Contact Resistance: 30 MILLI OHMS MAX.
  • Insulation Resistance: 1000 MEGA OHMS.
  • Operating Temperature: -40 TO +85 C
  • Double Tuning Fork Type Contact, Accommodates .025"[0.64mm] SQ PINS. .100"[2.54mm] PITCH LOW-PROFILE MINI TYPE.

Datasheet
