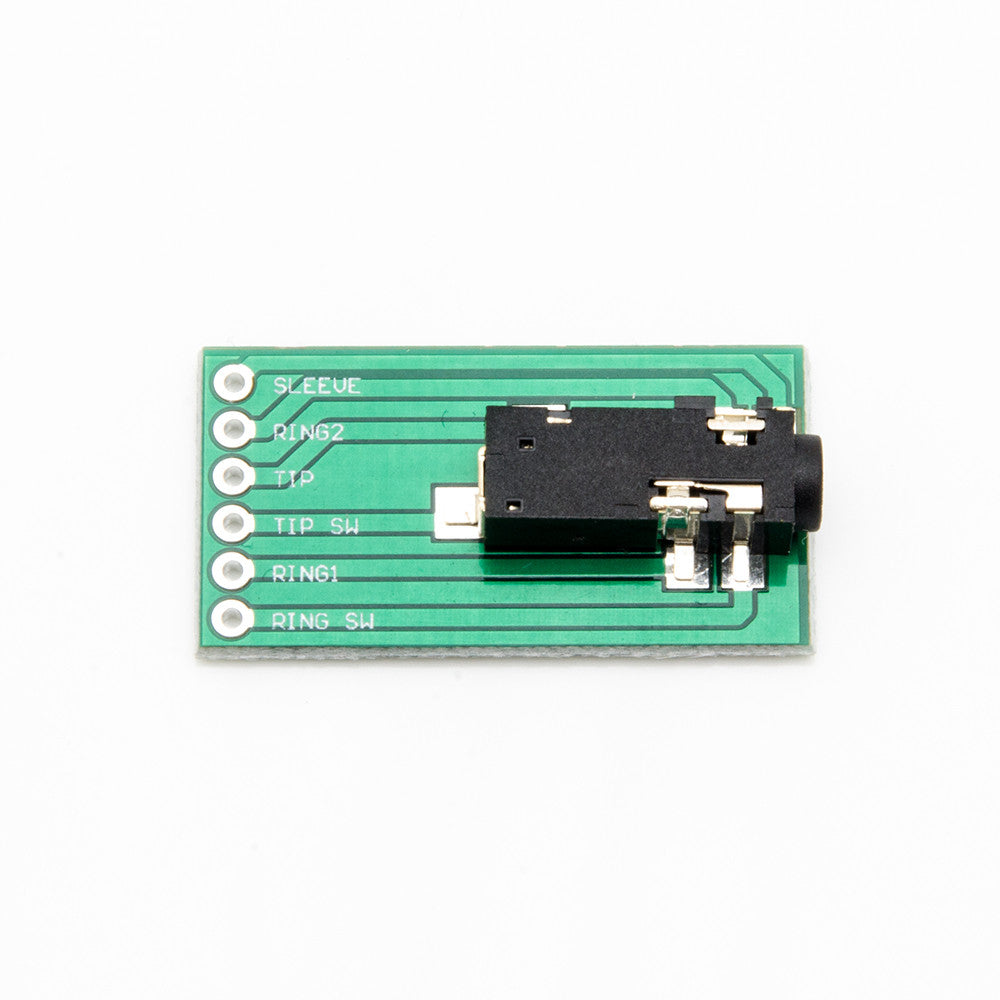

3.5 MM TRRS Audio Jack - SJ-43516-SMT-TR
3.5 MM TRRS Audio Jack - SJ-43516-SMT-TR 3.5 MM TRRS Audio Jack - SJ-43516-SMT-TR
$ 3.09

This 3.5mm (or 1/8") audio jack is a TRRS connector. Tip, Ring, Ring, Sleeve connectors are typically used for iphone or ipod audio, MP3 players, and newer laptops.  SJ-43516-SMT-TR

Features

  • TRRS connector
  • 4 conductors
  • Plastic bushing
  • Narrow footprint
  • Multiple switch options available

Datasheet

Schematic

PCB Layout

Mechanical [STEP]
