3.5 MM TRS Audio Jack - SJ-3524-SMT-TR
3.5 MM TRS Audio Jack - SJ-3524-SMT-TR 3.5 MM TRS Audio Jack - SJ-3524-SMT-TR
$ 2.79

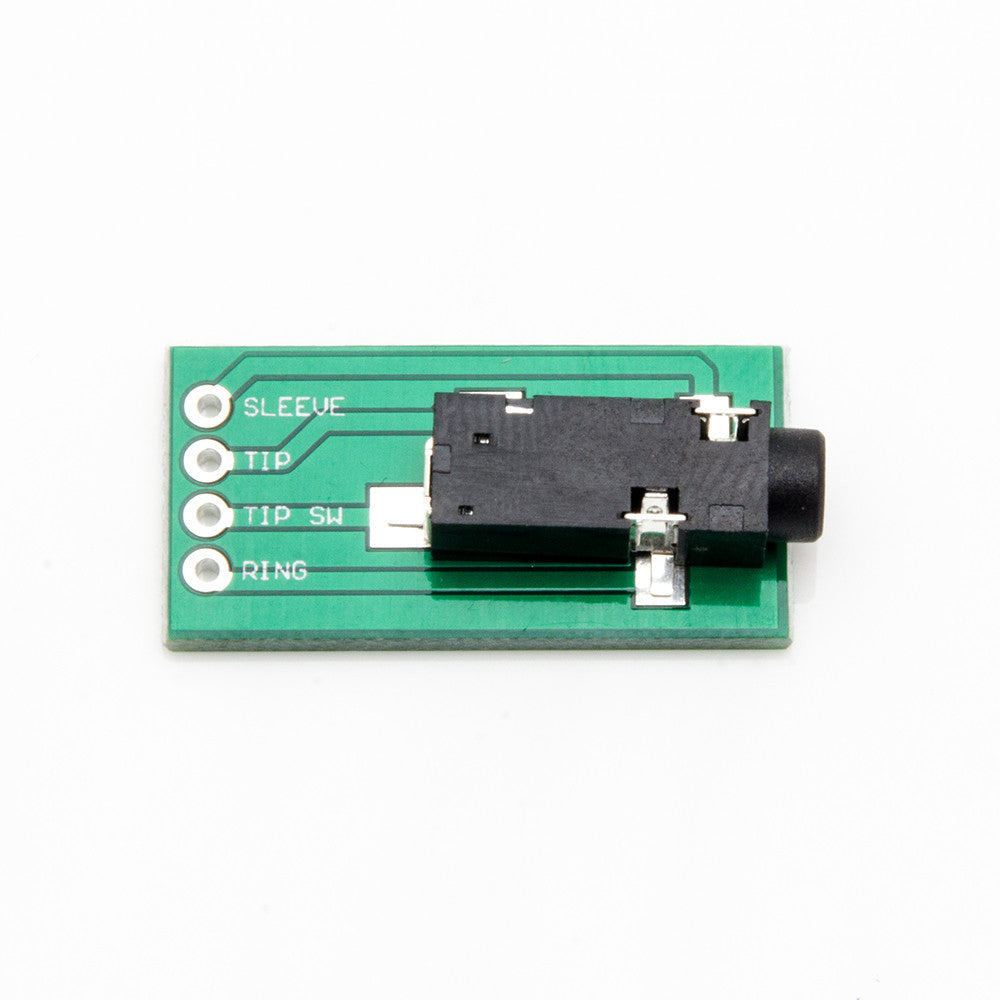

This audio jack is for use with devices such as iphone or ipod earbuds, MP3 players, and computer sound card inputs and outputs that use 3.5 mm (or 1/8") connectors for composite video and audio output. For use with a TRS connector, TRS has a tip with a positive connection for one channel or stereo signal, the ring is the positive connection for the other channel or stereo signal, and the sleeve is the common negative for both connections. Includes a cable present switch.

sku# SJ-3524-SMT-TR

Possible configurations:

Unbalanced Mono Balanced Mono  Stereo
Tip Signal Positive / Hot Left channel
Ring (Not connected) Negative / Cold Right channel
Sleeve Ground / Return Ground Ground



Datasheet

Schematic

PCB Layout

Mechanical [STEP]
