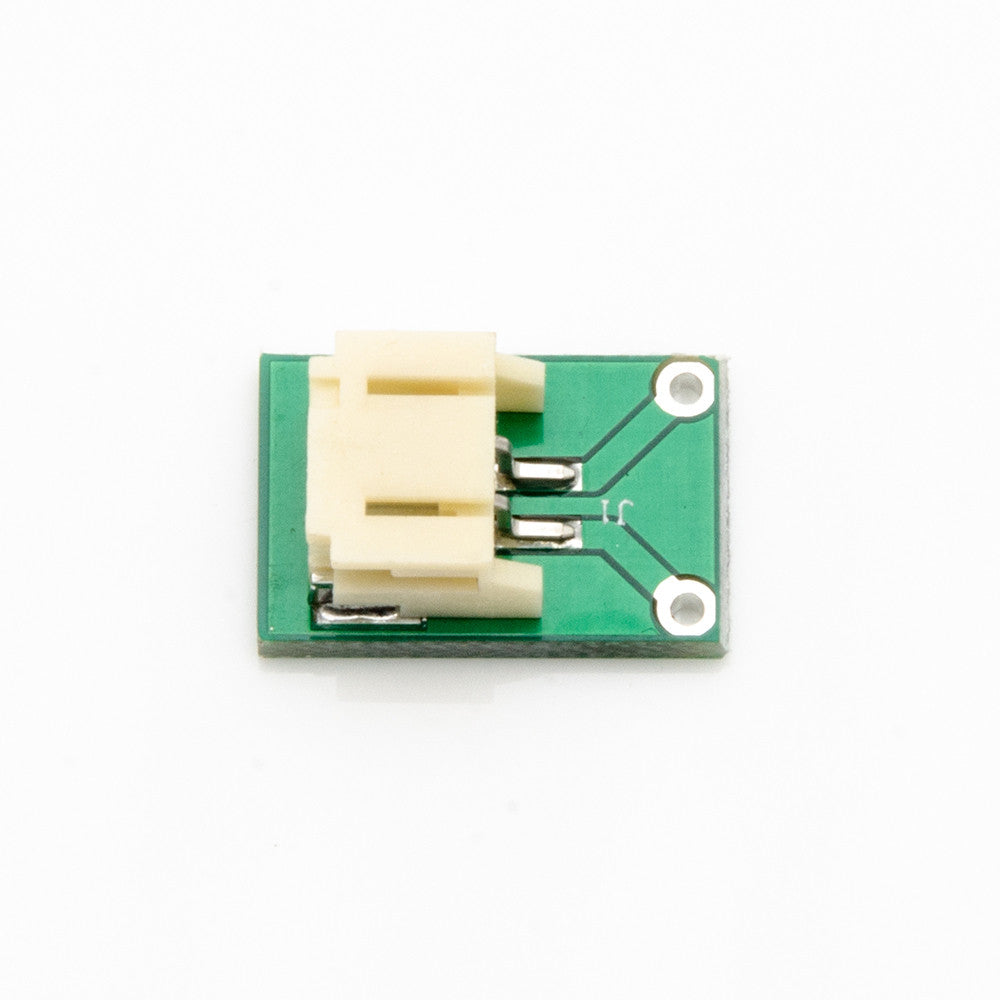

Pitch Connector Board - S2B-PH-SM4-TB-LF-SN
Pitch Connector Board - S2B-PH-SM4-TB-LF-SN Pitch Connector Board - S2B-PH-SM4-TB-LF-SN Pitch Connector Board - S2B-PH-SM4-TB-LF-SN
$ 1.49

The S2B-PH-SM4-TB-LF-SN is a thin, low-profile 2.0mm pitch connector 8.0mm in height after mounting and 4.5mm in width. It is designed to meet the demand for high-density connection of internal wires to printed circuit boards. It is compact and highly reliable.

Features:

  • Current rating: 2A AC, DC (AWG #24)
  • Voltage rating: 100V AC, DC
  • Temperature range: -25 degree celsius +85 degree celsius (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/ 10m x max; After environmental testing/20m x max
  • Insulation resistance: 1,000M x min
  • Withstanding voltage: 800V AC/minute
  • Applicable wire: AWG #32 to #24
  • Applicable PC board thickness: 0.8 to 1.6mm
  • Reliable contact
  • Fully shrouded header
  • Printed circuit board retention mechanism
  • Surface mount model (SMT)
