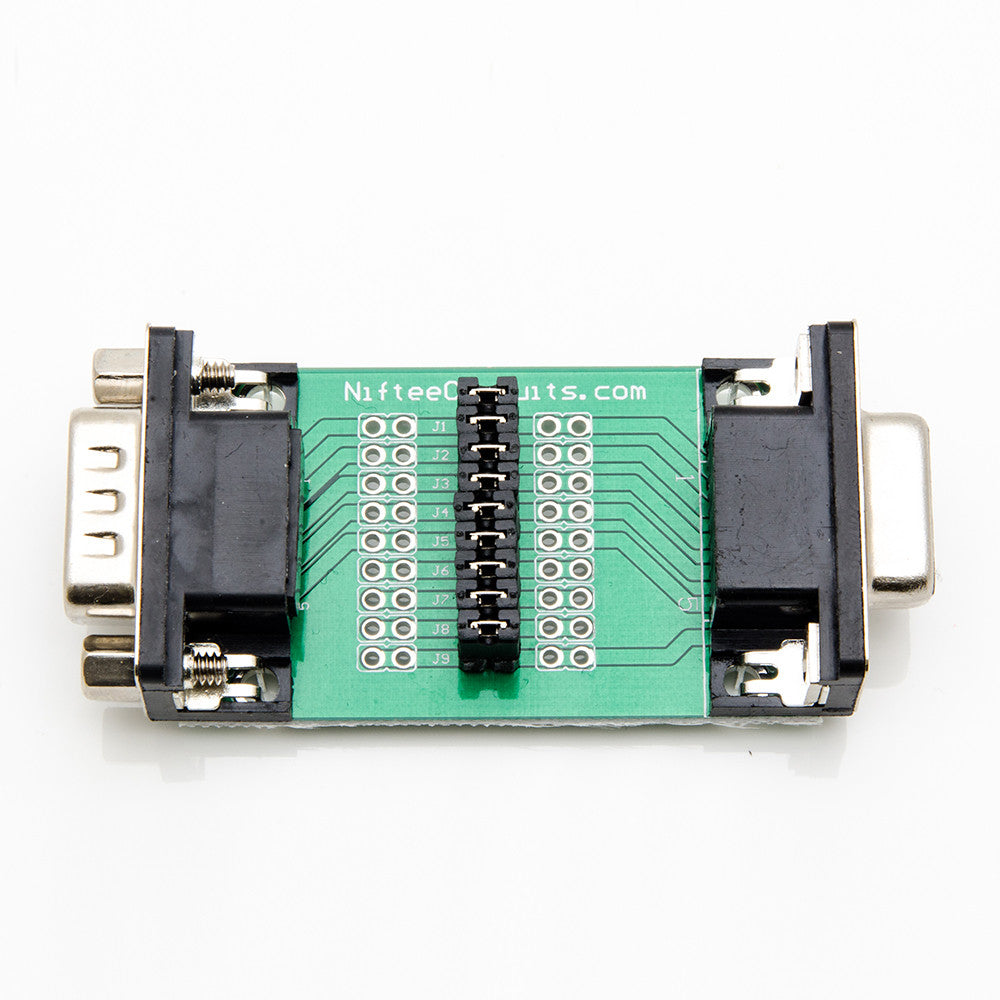

D-Sub Male/Female Board - DB9
D-Sub Male/Female Board - DB9 D-Sub Male/Female Board - DB9 D-Sub Male/Female Board - DB9 D-Sub Male/Female Board - DB9 D-Sub Male/Female Board - DB9
$ 9.29
Characteristics:
  • Rated Voltage: 250V
  • Rated Current: 5AMP
  • Contact Resistance: 25mohms Max Initial: 40 mohms MAX.AFTER
  • Insulation resistance: 5000mohms MIN.o.t 500V DC
  • Dielectric Strength: 1000VRMS
  • operating Temperature Range: -55 degree celsius - 105 degree celsius
  • Insertion/Extraction force per contact: 5N Max/0.3N Min.
  • Mating/Unmating Cycles: 50 Matings Min.

Material

  • Insulator: Glass-filled thermoplastic UL94V-0
  • Contacts: Phosphor Bronze
  • Shell: SPCC
  • Board Lock: Brass
  • Rivet: Copper Alloy

Datasheet - Male

Datasheet - Female
