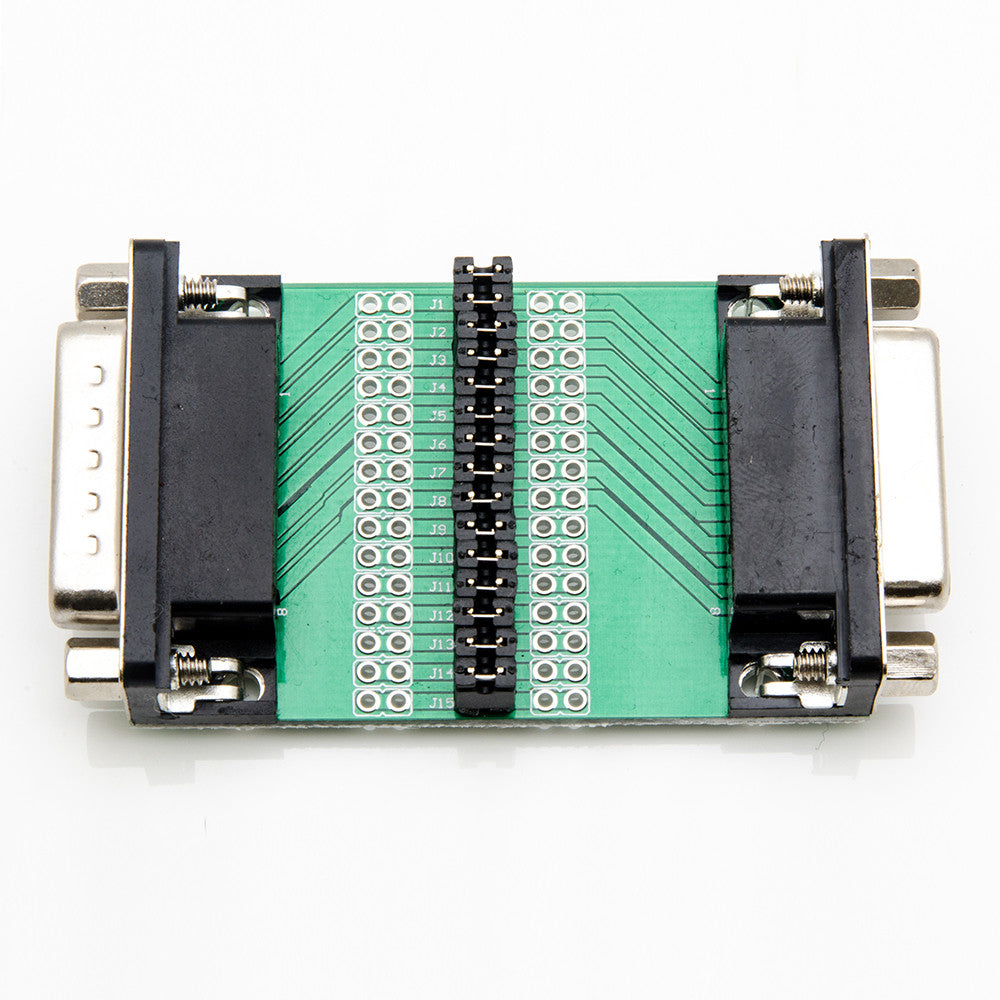

D-Sub Male/Female Board - DB15
D-Sub Male/Female Board - DB15 D-Sub Male/Female Board - DB15 D-Sub Male/Female Board - DB15 D-Sub Male/Female Board - DB15
$ 15.29
Characteristics:
  • Rated Voltage: 250V
  • Rated Current: 5AMP
  • Contact Resistance: 25mohms Max Initial: 40 mohms MAX.AFTER
  • Insulation resistance: 5000mohms MIN.o.t 500V DC
  • Dielectric Strength: 1000VRMS
  • operating Temperature Range: -55 degree celsius - 105 degree celsius
  • Insertion/Extraction force per contact: 5N Max/0.3N Min.
  • Mating/Unmating Cycles: 50 Matings Min.

Material

  • Insulator: Glass-filled thermoplastic UL94V-0
  • Contacts: Copper Alloy, Selective Gold on Contact area, 100u min matte tin top over solder area, 30u min nickel under plate
  • Shell: Steel 100u Min Nickel Top Over, 50u Min Copper under plate
  • Board Lock: Copper Alloy, 100u min matte tin plated.
  • Screw Lock: Copper Alloy, 100u min bright nickel plated.

Datasheet - Female

Datasheet - Male
